Tritan 560 Heater Assembly 240V, 60Hz, 1Ph
Item Number: T560P0931229
Price: $8,030.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
Tritan 560 Heater Assembly 240V, 60Hz, 1Ph


Tritan 560 Heater Assembly 240V, 60Hz, 1Ph


Tritan 560 Heater Assembly 240V, 60Hz, 1Ph


Tritan 560 Heater Assembly 240V, 60Hz, 1Ph


Part Number T560P0931229 Component List
  Item Component Description Quantity Unit
Price

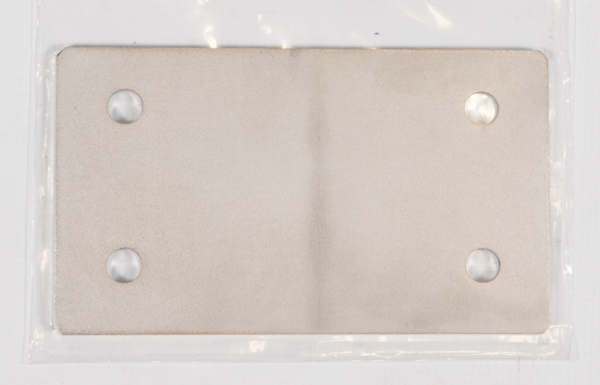

1 3603634 View Image Fcr Pivot Arm Splice Plate 2.0 EA 201.00
2 T5048010 Heater Standoff 14.0 EA 15.22
3 T5048101 Tapped Guide Rod Support Brkt 1.0 EA 140.00
4 T5048102 C'sunk Guide Rod Support Brkt 1.0 EA 140.00
5 T5048402 View Image Roller Bushing 2.0 EA 150.00
6 T5048501 Roller 1.0 EA 144.00
7 T5048601 Roller Pin 1.0 EA 46.19
8 T560P0930931 Heater Butt Plate 2.0 EA 502.00
9 T560P0931164 560MM Left Heater Element 1.0 EA 829.00
10 T560P0931169 560MM Right Heater Element 1.0 EA 829.00
11 T560P0931174 Heater Outer Diameter Spacer 1.0 EA 0.00
12 T560P0932181 Heater Inner Dia Spacer 1.0 EA 0.00
13 T560P0932992 Heater Seal Tight Bracket 1.0 EA 0.00
14 T560P0933406 Heater Arm 1.0 EA 1,464.00
15 T560P0933561 Heater Junction Box Bracket 1.0 EA 0.00
16 T560P0933855 Heater Gasket (Effective to 2/12/24) 2.0 EA 0.00
17 T560P0933885 Shoulder Nut 3.0 EA 0.00
18 T560P0948557 Heater Handle Wld 1.0 EA 0.00
19 T560P0948712 Tapped Heater Body 1.0 EA 836.00
20 T560P0948714 Counterbored Heater Body 1.0 EA 836.00
21 T560P0971907 Shoulder Nut 4.0 EA 76.32
22 T560P0973290 Electrical Box Mod 1.0 EA 0.00
23 MAB00004 View Image 1/4-20NCX1LG Hhcs 2.0 EA 0.32
24 MAB00035 View Image 5/16-18NCX1-1/2LG Hhcs (Effective to 9/26/24) 2.0 EA 0.51
24 MABP1041892 5/16-18NCX1-1/2LG HH SR FL Blt 2.0 EA 0.00
25 MAE00137 #10-24NCX5/8LG Bhscs Stl PL 4.0 EA 0.34
26 MAH00042 View Image #8-32NCX1/2LG Shcs SS 25.0 EA 0.39
27 MAH00051 View Image 1/4-20NCX1-3/4LG Shcs SS 2.0 EA 1.23
28 MAH00111 View Image #10-24NCX1/2LG Hwh TF Screw SS (Effective to 6/20/23) 2.0 EA 0.50

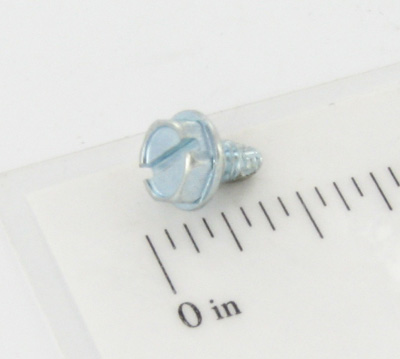

28 MAH00140 View Image #6-32NCX1/4LG Hwh TC Screw 2.0 EA 0.39
29 MAN00006 View Image #10-24NCX1/2LG Fhscs SS 28.0 EA 0.39
30 MAN00011 View Image #10-24NCX1-1/4LG Shcs SS 2.0 EA 0.49
31 MAN00044 View Image 3/8-16NCX1/2LG Bhscs SS 7.0 EA 0.67
32 MAN00087 #10-24NCX1-3/4LG Fhscs SS 3.0 EA 0.61
33 MBA00004 View Image #10-24NC Hex Nut Stl PL 4.0 EA 0.35
34 MBA00005 View Image 1/4-20NC Fnsh Hex Nut Stl PL 2.0 EA 0.32
35 MBA00006 View Image 5/16-18NC Fnsh Hex Nut Stl PL (Effective to 9/26/24) 2.0 EA 0.33
35 MBC00076 5/16-18NC Ser HX Flg Lock Nut 2.0 EA 0.00
36 MBA00061 View Image 1/4-20NC Fnsh Hex Nut 18-8 SS 2.0 EA 0.46
37 MBE00004 View Image #10 Reg Splt Lck Washer Stl PL 6.0 EA 0.10
38 MBE00005 View Image 1/4 Reg Splt Lck Washer Stl PL 2.0 EA 0.10
39 MBE00007 View Image 3/8 Reg Splt Lck Wshr Stl PL 7.0 EA 0.12
40 MBF00004 View Image #10 TY 'a' Wide FL Wshr Stl PL 4.0 EA 0.10
41 MBF00005 View Image 1/4 TY 'a' Wide FL Wshr Stl PL 4.0 EA 0.11
42 MBF00022 1/4 Flat Washer SS 4.0 EA 0.27
43 MBG00048 5/16 Type 'an' Flat Washer SS (Effective to 9/26/24) 4.0 EA 2.44
44 MKI00009 View Image 1X3/16 316SS 100OHM Dual Rtd 1.0 EA 115.00
45 MLI00002 View Image 3/4 Flex Conduit (Effective to 6/20/23) 0.63 FT 6.93
45 MLI00001 View Image 1/2 Flex Conduit 0.68 FT 6.69
46 MLJ00005 View Image 3/4 Seal Ring (Effective to 6/20/23) 1.0 EA 5.67
46 MLJ00004 View Image 1/2 Seal Ring 1.0 EA 5.24
47 MLJ00010 View Image 3/4 X 45DEG Conduit Connector (Effective to 6/20/23) 1.0 EA 44.10
47 MLJ00006 View Image 1/2 X 45DEG Conduit Connector 1.0 EA 24.50
48 MLJ00011 View Image 3/4 X Str Conduit Connector (Effective to 6/20/23) 1.0 EA 21.25

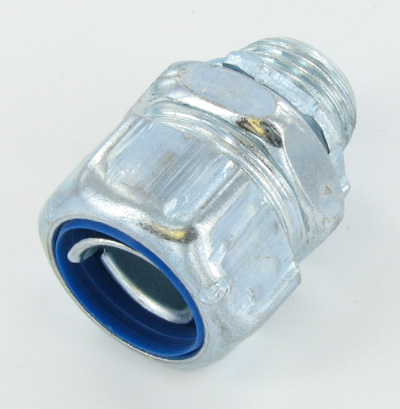

48 MLJ00012 View Image 1/2 Str Conduit Connector 1.0 EA 17.62
49 MLL00004 View Image #18 Type Tggt Elec Wire (Effective to 6/20/23) 0.29 FT 2.60
50 MLL00020 View Image #14 Type Tggt Wire 1.42 FT 2.48
51 MLL00121 #12 Type MG Elec Wire 1.68 FT 5.71
52 MLM00061 Steel Din Rail 0.55 FT 18.91
53 MLMP0973267 45 Degree Terminal Cover 1.0 EA 0.00
54 MLMP0973269 45 Degree 4X Terminal Block 5.0 EA 0.00
55 MLMP0979600 10-12 X #8 Ring Terminal (Effective to 6/20/23) 1.0 EA 0.00
55 MLM00119 10-12 X #6 Ring Terminal 1.0 EA 0.00
56 MLMP0981499 22-18 X #8 Ring Terminal (Effective to 6/20/23) 1.0 EA 0.00
56 MLM00171 14-16 X #6 Ring Terminal 1.0 EA 1.96
57 MLN00281 3/8" Black Shrink Tubing 4.0 IN 4.00
58 MLN00362 View Image 3/4" Elec Lock Nut (Effective to 6/20/23) 2.0 EA 1.27
58 MLN00100 View Image 1/2" Conduit Lock Nut 2.0 EA 1.03
59 MQFP0934696 4 Pos Male Jam Nut Receptacle 1.0 EA 0.00
60 MQFP0941366 8 Pos SZ12 Recept Conn W/ Pin 1.0 EA 0.00
61 MJK00002 View Image 2.5LG,150-650DEG F Thermometer 1.0 EA 48.72
62 MLM00056 View Image End Clamp 2.0 EA 5.96
63 MBF00002 #6 TY 'a' Wide FL Wshr Stl PL 2.0 EA 0.10
64 MQFP0987932 14AWG SZ16 Pin Terminal 4.0 EA 0.00
65 MLMP0934993 12-10 Awg Male Pin 3.0 EA 0.00
66 T560P1010041 Stainless Spacer 2.0 EA 0.00
67 829201 View Image Danger High Voltage Label 1.0 EA 5.02
68 MLU00020 ZB6 Marker 1-10 1.0 EA 4.64
69 N1T560P0931229 Nameplate 1.0 EA 0.00
Part Number T560P0931229 Supplemental Kits

Item
Item
Price
AT560P1028854 Tritan 560 htr butt plate kit
1,339.00
