Tritan 560 Carriage Assembly

Item Number:	T560P0941106
Price:	$64,401.00

Component Assembly Drawing

Click the +, -, ^, and arrow buttons to zoom and pan the image.

Tritan 560 Carriage Assembly

	Item	Component	Description	Quantity	Unit	Price
Part Number T560P0941106 Component List


	1	08P0874736	Emergency Stop Label	1.0	EA	3.49
	2	08P0979847	9.82 Tepa Label	2.0	EA	0.00
	3	T48P0887591	Alarm Assy	1.0	EA	153.00
	4	T560P0913914	Guide Rod	2.0	EA	814.00
	5	T560P0926141	Front Side Stfnr & Guard Plate	1.0	EA	0.00
	6	T560P0926146	Jaw Spacer Wld (Effective to 6/26/24)	6.0	EA	0.00
	6	T560P1030109	Jaw Brace	6.0	EA	278.00
	7	T560P0946609 (assembly)	Outer Fixed Jaw Assembly	1.0	EA	0.00
	8	T560P0946615 (assembly)	Inner Floating Jaw Assembly	1.0	EA	0.00
	9	T560P0946625 (assembly)	Outer Moveable Jaw Assembly	1.0	EA	0.00
	10	T560P0950260	Guide Rod Support	1.0	EA	0.00
	11	T560P0950915	Guide Rod Support Cap	1.0	EA	0.00
	12	T560P0950917	Fixed Jaw Cap	1.0	EA	0.00
	13	T560P0960177 (assembly)	Carriage Transducer Assembly	1.0	EA	0.00
	14	T560P0969563	Floating Jaw Hose Bracket	1.0	EA	0.00
	15	T560P0969684	Arm to Carriage Cable Assy	1.0	EA	0.00
	16	T560P0972633	Stop Switch Enclosure	1.0	EA	0.00
	17	T560P0974243	Moving Jaws Hose Bracket	1.0	EA	0.00
	18	T560P0974312	Carriage Front Guard	1.0	EA	571.00
	19	T560P0974396	Hose Bracket Guide Support (Effective to 6/20/23)	1.0	EA	0.00
	20	T560P0976211 (assembly)	Back Plate Assembly	1.0	EA	0.00
	21	T560P0985007	45" 69 Led Light Strip Assy	2.0	EA	0.00
	22	T560P0991892	Light Bar Retainer Clip	12.0	EA	0.00
	23	MAB00003	1/4-20NCX3/4LG Hhcs	5.0	EA	0.31
	24	MAB00004	1/4-20NCX1LG Hhcs	18.0	EA	0.32
	25	MAB00008	1/4-20NCX2LG Hhcs	3.0	EA	0.46
	26	MAB00065	3/8-16NCX1-1/4LG Hhcs	5.0	EA	0.52
	27	MAB00149	1-8NCX2-1/4LG Hhcs	4.0	EA	0.00
	28	MAB00257	1/4-20NCX3/4LG Hxhd SR Flg Blt	23.0	EA	0.52
	29	MAB00261	3/8-16NCX1LG HX HD SR Flg Blt	48.0	EA	0.00
	30	MACP0971828	3/4-10NCX2LG Shcs PL	6.0	EA	0.00
	31	MAH00097	1/4-20NCX1/2LG Bhscs SS	1.0	EA	0.42
	32	MBC00005	1/4-20NC Fnsh Hex Nyl Lck Nut	19.0	EA	0.39
	33	MBC00007	3/8-16NC Fnsh Hex Nyl Lck Nut	5.0	EA	0.39
	34	MBF00005	1/4 TY 'a' Wide FL Wshr Stl PL	28.0	EA	0.11
	35	MBF00007	3/8 TY 'a' Wide FL Wshr Stl PL	10.0	EA	0.11
	36	MBF00011	5/8 TY 'a' Wide FL Wshr Stl PL (Effective to 3/11/24)	3.0	EA	0.40
	36	MBF00012	3/4 TY 'a' Wide FL Wshr Stl PL	3.0	EA	0.99
	37	MBG00011	1 Flat Washer Stl	4.0	EA	2.48
	38	MBG00130	1/4 SS & Rubber Seal Washer	4.0	EA	0.00
	39	MCE00009	3/4DIAX2.00 Grip Detent Pin	2.0	EA	18.59
	40	MCK00130	Lanyard Wire, 6" E/e, Coated	2.0	EA	10.13
	41	MEBP0969852	2-1/2B X 12S X 1-1/2R Hyd Cyl	2.0	EA	618.00
	42	MFDP0977284	1/4 Hose P Clamp	5.0	EA	0.00

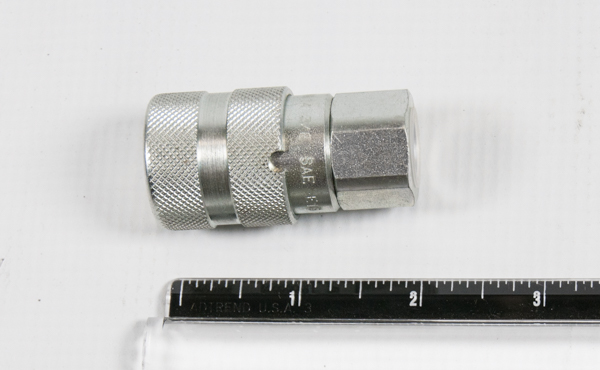

	43	MFH00096	5/8FSAE Quick Disc Coupler	1.0	EA	171.00

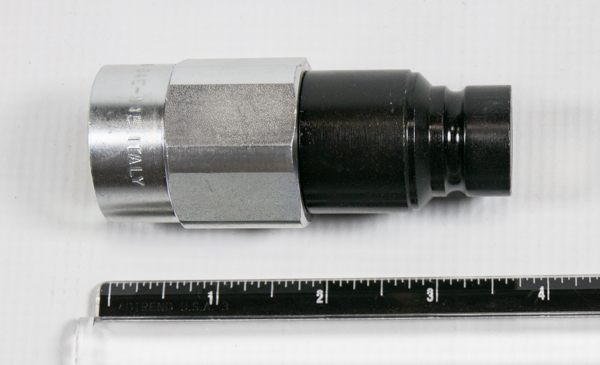

	44	MFH00099	5/8FSAE Quick Disc Nipple	1.0	EA	111.00
	45	MFH00102	3/8FSAE Quick Disc Coupler	1.0	EA	66.80
	46	MFLP0969549	6 Hose Clamp Body (Effective to 6/20/23)	8.0	S2	0.00
	46	MFLP0998720	10 Hose Clamp Body	2.0	S2	0.00
	47	MFLP0971630	4 Hose Clamp Body (Effective to 6/20/23)	16.0	S2	0.00
	48	MFLP0975823	Type GD Cover Plate	10.0	EA	0.00
	49	MFQ00001	6MSL/8MSAE Elbow	2.0	EA	23.25
	50	MFQ00061	6MSL/8MSAE Adapter	2.0	EA	10.24
	51	MFQP0970048	6MSL/6MSL/6MSL Blkhd Brnch Tee (Effective to 6/20/23)	2.0	EA	0.00
	52	MKCP0817590	Red Push-pull Switch	1.0	EA	139.00
	53	MLJ00071	1/2 Loop Clamp	4.0	EA	2.72
	54	MQF00764	5 Posn M12 Bulkhead Connector	1.0	EA	25.62
	55	MQFP0845083	8.2MM Hole SD MT Brkt for Conn	1.0	EA	4.42
	56	SLABBJD021	Hose Assy Oal 21" (Effective to 3/11/24)	1.0	EA	0.00
	56	SLABBJDA021	Hose Assy Oal 21"	1.0	EA	0.00
	57	SLGBDBD023	Hose Assy Oal 23" (Effective to 6/20/23)	2.0	EA	0.00
	58	SLGBDBD038	Hose Assy Oal 38" (Effective to 6/20/23)	2.0	EA	0.00
	59	SLHBEJF027	Hose Assy Oal 27" (Effective to 3/11/24)	2.0	EA	0.00
	59	SLHBEJFA027	Hose Assy Oal 27"	2.0	EA	0.00
	60	08P0998664	Small Relay Fuse Block Label	1.0	EA	0.00
	61	8163361	Prop 65 Battery Warning Label	1.0	EA	1.05
	62	T560P0996965	22 IPS/560MM Quarter Jaw Insrt (Effective 6/21/23 to 7/13/23)	8.0	EA	494.00
	62	T560P0999718	Manifold Bracket (Effective 6/21/23 to 7/14/24)	1.0	EA	0.00
	64	T560P0999964 (assembly)	Carriage Cylinder Distribution Retract Manifold	1.0	EA	0.00
	65	T560P0999969 (assembly)	Carriage Cylinder Distribution Extend Manifold	1.0	EA	0.00
	66	T560P1000665	Retrctg Mnfld-opr SD Cyl Rod	1.0	EA	0.00
	67	T560P1000672	Extndg Mnfld-opr SD Cyl Rod	1.0	EA	0.00
	68	T560P1000685	Extndg Mnfld-eng SD Cyl Rod	1.0	EA	0.00
	69	T560P1000690	Retrctg Mnfld-eng SD Cyl Rod	1.0	EA	0.00
	70	N1T560P0941106	Nameplate	1.0	EA	0.00
	72	MCEP0993946	1/2DIA X 4.00 Grip Detent Pin (Effective 6/21/23 to 7/13/23)	8.0	EA	17.10
	73	MCK00005	1/8DIAX .462" Grip Blind Rivet	4.0	EA	0.39
	74	MFLP0998726	6 Hose Clamp Body	10.0	S2	0.00
	75	MFLP0998736	Type GD Cover Plate	2.0	EA	0.00
	76	MFLP0999627	6 Hard Tube Clamp Body	2.0	EA	0.00
	77	MFLP0999632	Type GD-1D Cover Plate	2.0	EA	0.00

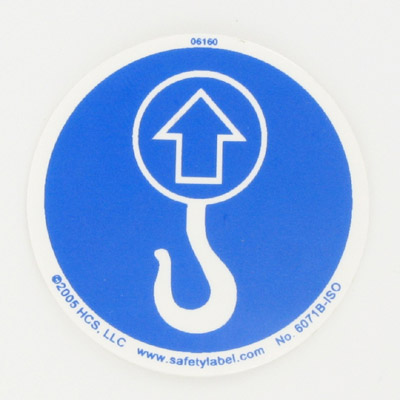

	78	MJQ00366	Blue Lift Point Label	4.0	EA	5.94
	79	MJQ00655	5/8ID X 7/8OD Rubber Grommet	1.0	EA	0.00
	80	T560P1003894 (assembly)	Inner Moving Jaw Assembly	1.0	EA	0.00
	81	MABP0888623	1/4-20NCX3LG Hhcs Stl PL	2.0	EA	0.00
	81	MABP0898408	1/4-20NCX3-1/2LG Hhcs Stl PL (Effective 7/14/23 to 7/14/24)	2.0	EA	0.00
	82	MCLP0861029	1/4-20 Hex Rivet Nut	18.0	EA	0.00
	83	MQFP1007322	M12 Socket Cap	1.0	EA	7.48
	84	T560P0998200	Tritan Carriage Firmware	1.0	EA	0.00
	85	MAB00009	1/4-20NCX2-1/4LG Hhcs	11.0	EA	0.74

	Item	Description	Price
Part Number T560P0941106 Related Manuals, Instruction Sheets, and Older Equipment


	T560P0940584	Tritan Electrical Schematic	0.00
	T560P0998964	Tritan 560 Fusion Machine Operator's Manual	0.00
	T560P1002780	Hydraulic schematic	0.00
