DynaMc 412 Hand Pump 220-240V, 50/60Hz, 1Ph Facer Assembly
Item Number: 1275201
Price: $10,497.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
DynaMc 412 Hand Pump 220-240V, 50/60Hz, 1Ph Facer Assembly


DynaMc 412 Hand Pump 220-240V, 50/60Hz, 1Ph Facer Assembly


Part Number 1275201 Component List
  Item Component Description Quantity Unit
Price
1 410902 View Image Danger Not Expln Proof Label 1.0 EA 1.80
2 808802 View Image Driver Sprocket Hex 1.0 EA 69.11
3 1261801 View Image Dynamc Elec Facer Bearing Cap 1.0 EA 168.00
4 1262002 View Image Dynamc Facer Body 1.0 EA 1,996.00
5 1262201 View Image Dynamc 412 Guide Rod Bracket 2.0 EA 144.00
6 1275301 Dynamc EL Fcr Mtr Adpt PL Wld 1.0 EA 877.00
7 1275401 Dynamc EL Fcr Mtr Split Clamp 1.0 EA 215.00

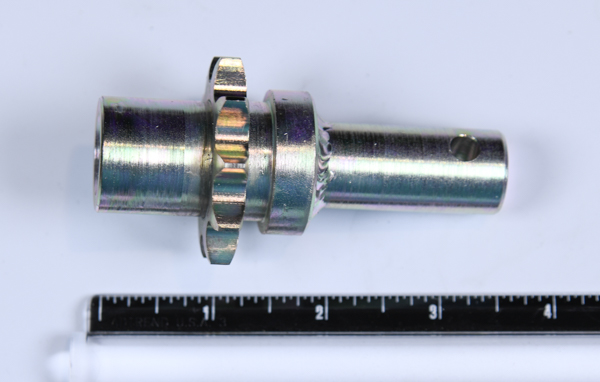

8 1275501 View Image Dynamc Elec Fcr Shaft Wld 1.0 EA 887.00

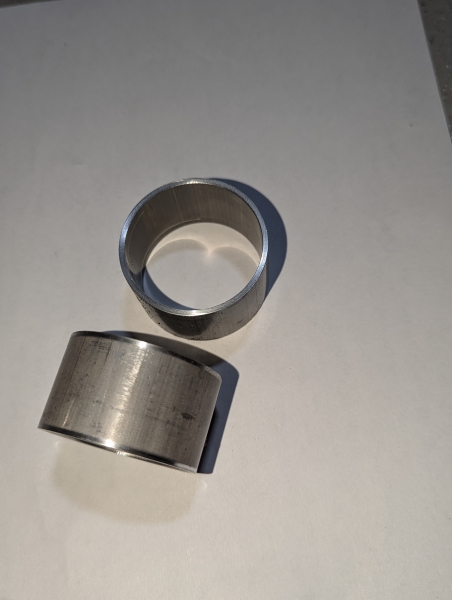

9 1275601 View Image Dynamc Elec Facer Spacer 1.0 EA 60.64
10 AT1208701 View Image Facer Roller Chain Assembly 1.0 EA 61.15
11 T1208102 View Image Tapped Blade Holder 1.0 EA 1,441.00
12 T1208103 View Image C'bored Blade Holder 1.0 EA 1,441.00
13 T1208201 View Image Bearing Spacer 1.0 EA 108.00

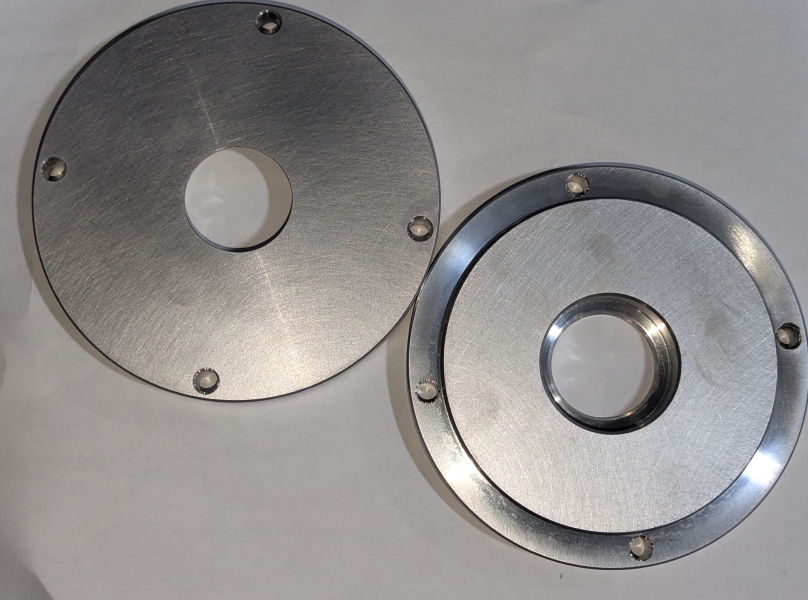

14 T1208301 View Image Bearing Retainer 1.0 EA 200.00
15 T1208401 View Image Driven Sprocket 1.0 EA 231.00
16 T1208501 View Image Facer Seal Ring 2.0 EA 54.37
17 T1208502 View Image Facer Body O'ring 2.0 EA 6.06
18 T1208609 View Image 6.12 LG Facer Blade 6.0 EA 135.00
19 T5008801 View Image Replaced by T5008803 (Effective to 6/6/13) 1.0 EA 0.00
19 T5008803 View Image Fcr Latch Handle 1.0 EA 361.00
20 MAB00081 1/2-13NCX1-1/4LG Hhcs 2.0 EA 1.43
21 MAD00031 View Image #10-24NCX1/2LG Fhscs 8.0 EA 0.39

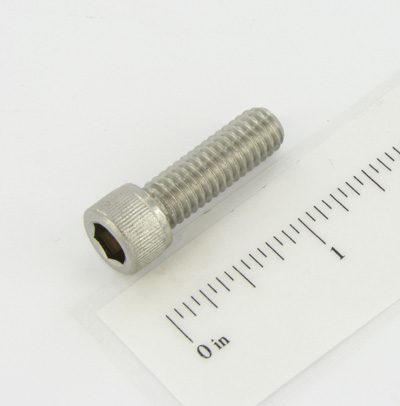

22 MAH00051 View Image 1/4-20NCX1-3/4LG Shcs SS 6.0 EA 1.23
23 MAH00052 View Image 1/4-20NC X 3/4"LG Shcs SS (Effective to 5/1/25) 4.0 EA 0.49
23 MAH00055 View Image 1/4-20NCX1LG Shcs SS 4.0 EA 0.41
24 MAH00074 View Image #8-32NCX3/8LG Fhscs SS 24.0 EA 0.29
25 MAH00078 View Image 3/8-16NCX1-1/2LG Shcs SS 2.0 EA 2.09
26 MAH00148 View Image 5/16-18NCX1LG Shcs SS (Effective to 10/26/17) 1.0 EA 0.62
26 MAH00274 5/16-18NCX7/8LG Shcs SS 1.0 EA 0.62
27 MAN00009 View Image 3/8-16NCX1LG Shcs SS 2.0 EA 1.05
28 MBE00005 View Image 1/4 Reg Splt Lck Washer Stl PL 4.0 EA 0.10
29 MBE00009 View Image 1/2 Reg Splt Lck Washer Stl PL 2.0 EA 0.18
30 MCG00009 View Image 1/4DIAX1-1/8LG Roll Pin ZN PL 1.0 EA 0.73
31 MCK00017 View Image 3/8DIAX1-3/4LG Lock Pin Stl PL 1.0 EA 3.45
32 MDB00121 View Image 220V, 1150W Universal Motor 1.0 EA 1,631.00
33 MDM00027 View Image Ball Bearing 1.0 EA 24.99
34 MDM00304 View Image 10" ID X 10.75" OD Bearing 1.0 EA 2,518.00
35 MJE00008 View Image Die Spring 1.0 EA 6.69
36 MJJ00009 View Image 1" Black Gloss Hand Grip 1.0 EA 3.86
Part Number 1275201 Suggested Accessories

Item
Description
Price
T1208610 6.13 Long Facer Blade Set (6 Blades)
 		798.00
T1208610C 6.13 Long Extended Life Facer Blade Set (6 Blades)
 		1,344.00
