SmartFab 200-240V, 50/60Hz, 1 Ph Heater Assembly
Item Number: 461302
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
SmartFab 200-240V, 50/60Hz, 1 Ph Heater Assembly


Part Number 461302 Component List
  Item Component Description Quantity Unit
Price
1 436301 View Image Cover Plate Gasket 1.0 EA 7.53
2 461402 (assembly) SmartFab 200-240V, 50/60Hz, 1 Ph Heater Control Box Assembly 1.0 EA 1,094.00
3 462403 Obsolete (Effective to 1/13/16) 1.0 EA 0.00
3 464001 Heater Linkage Stop 1.0 EA 0.00
4 462405 Heater Pivot Base (Effective to 1/13/16) 1.0 EA 0.00
4 462201 (assembly) SmartFab Heater Pivot Base Assembly 1.0 EA 0.00
5 462501 Heater Pivot Wld 1.0 EA 0.00
6 462801 Smartfab Heater Body 1.0 EA 193.00
7 464201 Heater Spring Sleeve 1.0 EA 0.00

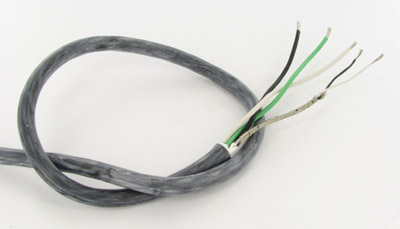

8 841303 View Image 12/3 Pwr Cord W/shield TW Pair 7.0 FT 49.26
9 8163210 Electrical Safety Test Label 1.0 EA 0.00
10 MAB00004 View Image 1/4-20NCX1LG Hhcs 1.0 EA 0.32
11 MAD00044 View Image 1/4-20NCX3/4LG Fhscs PL 2.0 EA 0.85
12 MAN00083 #10-24NCX5/8LG Shcs SS 2.0 EA 0.39
13 MBA00005 View Image 1/4-20NC Fnsh Hex Nut Stl PL 2.0 EA 0.32
14 MCI00004 1/4DIAX1/2LG Dowel Pin (Effective to 1/13/16) 2.0 EA 0.64

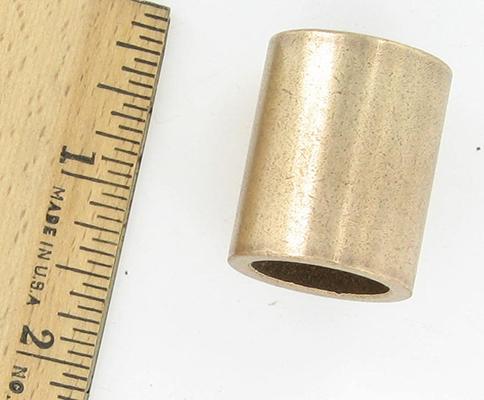

15 MDM00011 View Image Bushing (Effective to 1/13/16) 2.0 EA 9.48
16 MHA00001 1/4ID X 3/8OD Clear Tubing (Effective to 4/18/16) 0.25 FT 6.17
16 SW03503 View Image Heater Spacer Tube 1.0 EA 10.23
17 MJE00028 View Image Compression Spring 1.0 EA 8.51

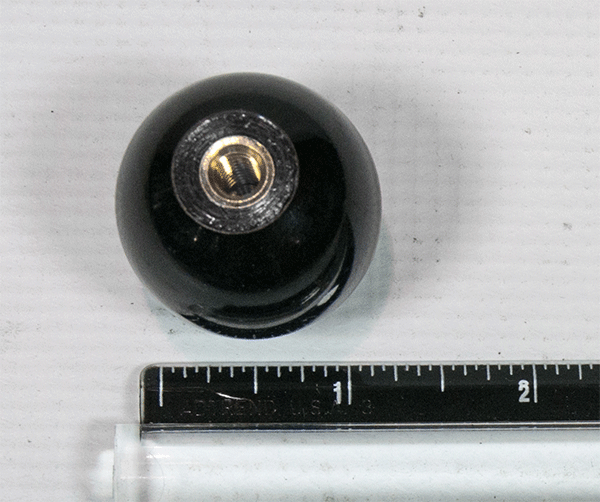

18 MJJ00041 View Image 1/4-20NC Ball Knob 1.0 EA 7.93
19 MJQ00604 3/4" Stackable Clmpng Hanger 1.0 EA 0.00
20 MKI00003 View Image 1X3/16 316SS 100OHM Plat Rtd 1.0 EA 64.04

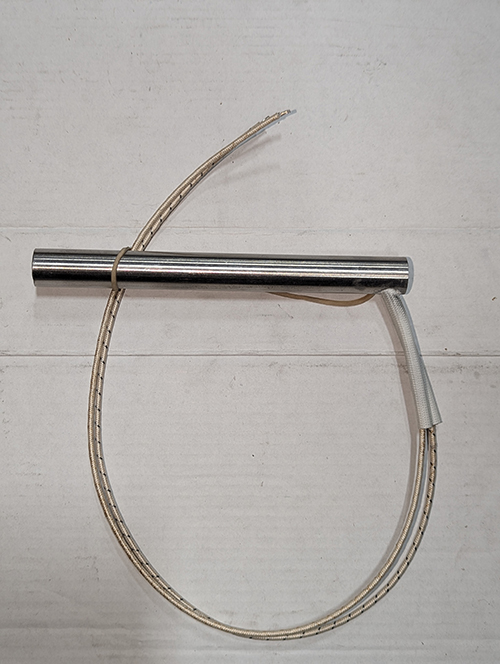

21 MLD00091 View Image 120V,800W,5/8X6 Crtg Htr 2.0 EA 123.00
22 MLK00099 3/8" Strain Relief Connector (Effective to 1/14/21) 1.0 EA 0.00
22 MLK00155 3/8 Wire Mesh Cord Grip 1.0 EA 88.99
23 MLL00025 View Image #12 Type Tggt Elec Wire (Effective to 9/20/16) 0.5 FT 5.22
23 MLL00182 #12 Type Tggt Wire, Green/yel (Effective 9/21/16 to 9/23/20) 0.5 FT 7.13
24 MLM00024 View Image 10-12 X #10 Hi-temp Ring Term (Effective to 9/23/20) 1.0 EA 5.00
24 MLM00395 10-12 X #8 Hi-temp Ring Term 1.0 EA 1.16
25 MLM00040 View Image 18-22 Hi-temp Butt Splice 2.0 EA 1.04
26 MLM00180 10-12 Hi-temp Butt Splice (Effective to 6/19/16) 3.0 EA 3.05
26 MLM00012 View Image 14-16 Hi-temp Butt Splice 3.0 EA 0.42
27 MLN00219 Fiberglass Tape (per Ft) 1.166 FT 0.56

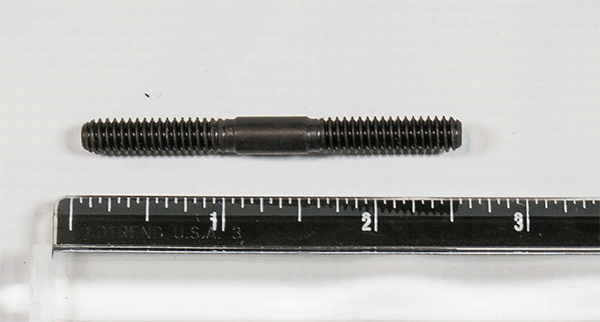

28 MNL00002 View Image 1/4-20NCX2.5 Dbl End Stud 1.0 EA 0.00
29 MLW00002 View Image 0.133ID Fiberglas Sleeve(roll) 0.77 FT 2.08
30 MAL00024 #8-32NCX1/4LG Hwhsms SS 1.0 EA 0.34
