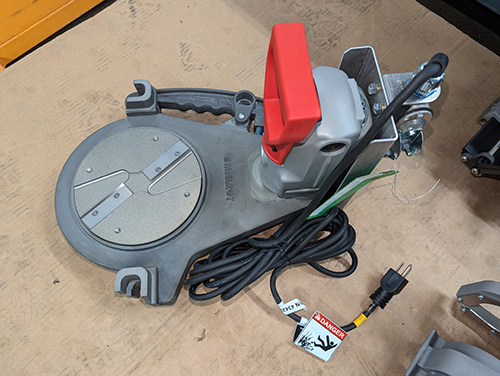

Acrobat 26 120V, 50/60Hz, 1 Ph Facer Assembly w/ Nema 5-15 Plug
Item Number: 709602
Price: $2,778.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
Acrobat 26 120V, 50/60Hz, 1 Ph Facer Assembly w/ Nema 5-15 Plug


Part Number 709602 Component List
  Item Component Description Quantity Unit
Price
1 A424101 (assembly) View Image #14 BM Facer Motor Assembly 100-120V, 50/60Hz, 1Ph 1.0 EA 1,349.00
2 A710501 Facer Chain Assy 1.0 EA 29.19
3 410902 View Image Danger Not Expln Proof Label 1.0 EA 1.80
4 417202 View Image Driver Sprocket Weldment 1.0 EA 122.00
5 433002 View Image Latch Handle 1.0 EA 135.00
6 709702 View Image Facer Body 1.0 EA 803.00
7 709802 View Image Facer Cover 1.0 EA 319.00

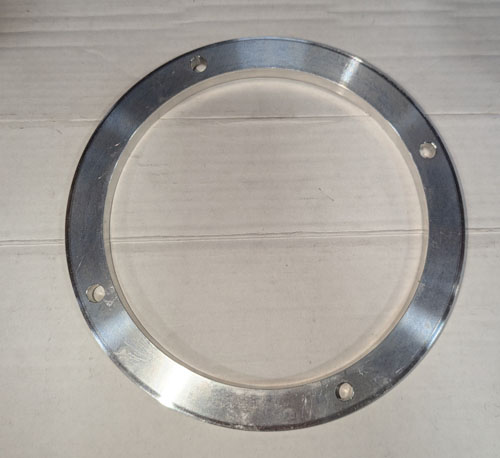

8 710101 Clamping Ring 1.0 EA 61.26
9 710301 View Image Facer Handle Weldment 1.0 EA 155.00
10 710401 View Image Driven Sprocket 1.0 EA 231.00
11 710603 26 Pp-r Blade (Effective to 12/10/18) 4.0 EA 0.00
11 710601 View Image Facer Blade 3LG 4.0 EA 76.23
12 710901 Preload Spacer 1.0 EA 3.38
13 717401 Pocketed Tapped Blade Holder (Effective 12/11/18 to 9/20/21) 1.0 EA 287.00
13 717403 Pocketed Tapped Blade Holder (Effective 3/18/15 to 12/10/18) 1.0 EA 271.00
13 717404 Tapped Blade Holder (sand) (Effective 9/21/21 to 4/22/26) 1.0 EA 0.00
13 07P1042090 Tapped Blade Holder 1.0 EA 417.00
14 717501 Pocketed C'bore Blade Holder (Effective 12/11/18 to 9/20/21) 1.0 EA 287.00
14 717503 Pocketed C'bore Blade Holder (Effective 3/18/15 to 12/10/18) 1.0 EA 263.00
14 717504 C'bored Blade Holder (sand) (Effective 9/21/21 to 4/22/26) 1.0 EA 0.00
14 07P1041772 Counterbore Blade Holder 1.0 EA 417.00

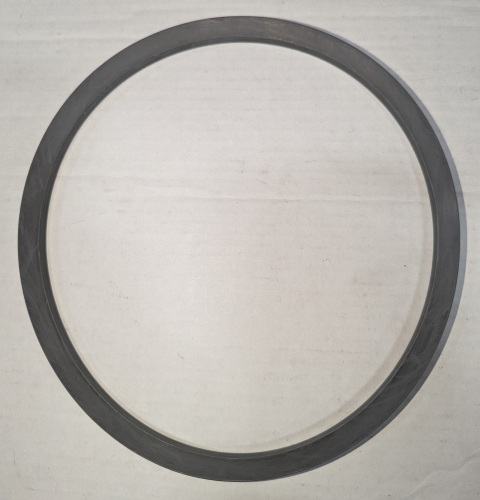

16 710001 View Image Spacer Ring 1.0 EA 233.00

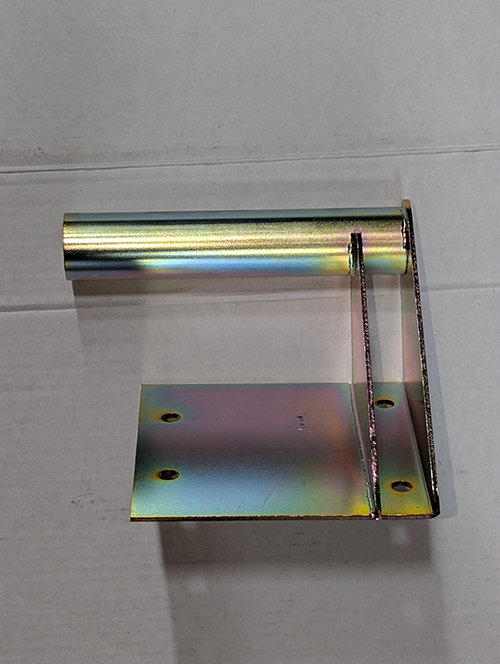

17 883706 26 HT Guide Rod Bracket 2.0 EA 105.00
18 MAB00002 View Image 1/4-20NCX1/2LG Hhcs 4.0 EA 0.18
19 MAC00053 View Image 1/4-20NCX3/4LG Shcs PL 2.0 EA 0.49
20 MAC00055 View Image 1/4-20NCX1LG Shcs PL 2.0 EA 0.25
21 MAC00065 View Image L/h 1/4-20NCX1-1/2LG Shcs PL 1.0 EA 3.69
22 MAC00444 1/4-20NCX1-1/2LG Shcs Stl PL 4.0 EA 0.68
23 MAD00030 #10-24NCX3/8LG Fhscs PL 8.0 EA 0.39
25 MAH00037 View Image #10-24NCX3/4LG Hwh TF Screw 9.0 EA 0.35
26 MAH00074 View Image #8-32NCX3/8LG Fhscs SS 8.0 EA 0.29
28 MBE00005 View Image 1/4 Reg Splt Lck Washer Stl PL 2.0 EA 0.10
30 MBG00044 1/4 Type 'an' Flat Wshr Stl PL 2.0 EA 0.49
31 MCK00017 View Image 3/8DIAX1-3/4LG Lock Pin Stl PL 1.0 EA 3.45
32 MDL00260 View Image V-ring Seal 1.0 EA 91.91
33 MDM00087 View Image Ball Bearing 1.0 EA 24.79
34 MDM00305 View Image Bearing 1.0 EA 1,092.00
35 MJE00008 View Image Die Spring 1.0 EA 6.69
36 MJJ00009 View Image 1" Black Gloss Hand Grip 1.0 EA 3.86
Part Number 709602 Suggested Replacements

Item
Description
Price
710604 Q1 facer blade set=4
252.00
MJQ00060 Handle for mdb00012
35.81
