EP800AD (Acrobat) 120V, 60Hz, 1Ph HPU Assembly w/ Outlets
Item Number: 718805
Price: $10,260.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
EP800AD (Acrobat) 120V, 60Hz, 1Ph HPU Assembly w/ Outlets


EP800AD (Acrobat) 120V, 60Hz, 1Ph HPU Assembly w/ Outlets


Part Number 718805 Component List
  Item Component Description Quantity Unit
Price
1 718703 EP800AD Hpu Hose Assy 1.0 EA 444.00
2 719201 Frame Rail 2.0 EA 0.00
3 719301 Tank Skid Plate 1.0 EA 0.00
4 719401 Cord & Hose Mount Bracket 1.0 EA 0.00
5 719501 Tie Rod 2.0 EA 25.84

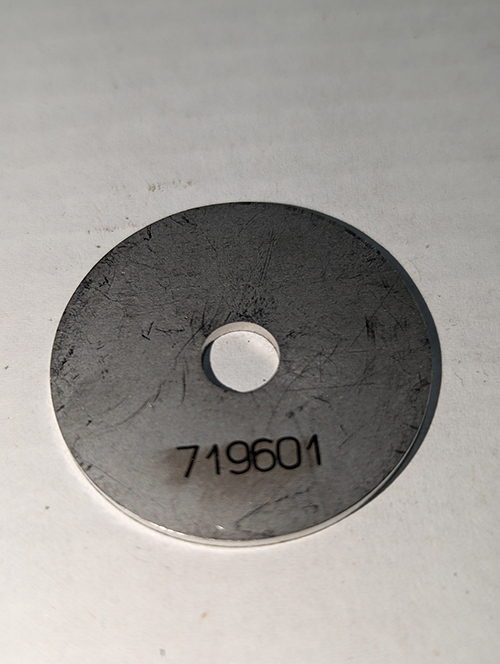

6 719601 View Image Washer 6.0 EA 11.58
7 719702 Hpu Mntg Plate 1.0 EA 0.00
8 719805 (assembly) EP800AD (Acrobat) 120V HPU Cover & Electrical Box Assembly w/ Outlets 1.0 EA 4,600.00
9 720501 End Plate 2.0 EA 43.31

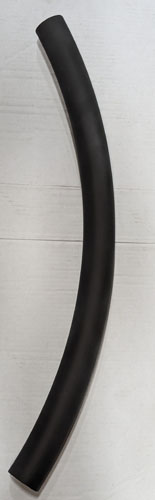

10 720601 View Image Handle Tube 1.0 EA 389.00
11 8163120 View Image Large McElroy Branding Label 1.0 EA 6.41
12 8163329 10" McElroy Branding Label 1.0 EA 17.84
13 MAB00063 View Image 3/8-16NCX3/4LG Hhcs 2.0 EA 0.40
14 MAE00016 #8-32NCX1/4LG Bhscs (Effective to 4/18/23) 1.0 EA 0.00
14 MAH00042 View Image #8-32NCX1/2LG Shcs SS 1.0 EA 0.39
15 MAE00130 1/4-20NCX1-3/4LG Bhscs Stl PL 6.0 EA 1.60
16 MAN00028 #6-32NCX5/8LG Bhscs SS 3.0 EA 0.29
17 MAN00032 View Image #10-32NFX1/4LG Bhscs SS 4.0 EA 0.00
18 MBA00005 View Image 1/4-20NC Fnsh Hex Nut Stl PL 4.0 EA 0.32
19 MBC00002 View Image #6-32NC Mach Scr Nyl Lck Nut 3.0 EA 0.39
20 MBC00003 #8-32NC Mach Scr Nyl Lck Nut 1.0 EA 0.39
21 MBF00005 View Image 1/4 TY 'a' Wide FL Wshr Stl PL 14.0 EA 0.11
22 MBF00007 View Image 3/8 TY 'a' Wide FL Wshr Stl PL 2.0 EA 0.11
23 MBG00031 View Image 1/4 Fender Washer Stl PL 2.0 EA 0.31
24 MBH00043 View Image 1/4-20NC Low Crown Acorn Nut 4.0 EA 0.49
25 MBH00133 1.12-1.15"ID X 1/4-20 Tube Nut 6.0 EA 3.82
26 MCL00004 View Image 1/8X1/4 Grip Blind Rivet 4.0 EA 0.11
27 MCL00018 3/16X.062-.27" Dome HD Rivet 14.0 EA 0.00
28 MEA00169 .3HP 120VAC 50/60HZ Hpu 1.0 EA 3,951.00
29 MED00097 3 Micron MP Filter Assembly 1.0 EA 831.00

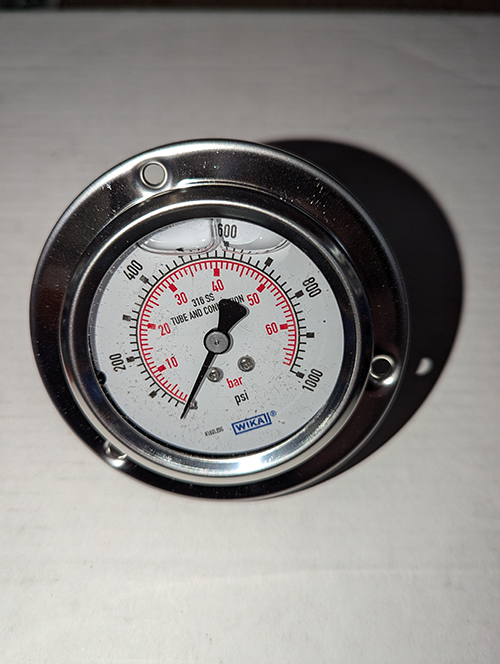

30 MEE00073 View Image 1000PSI Pressure Gauge (Effective to 4/4/22) 1.0 EA 116.00

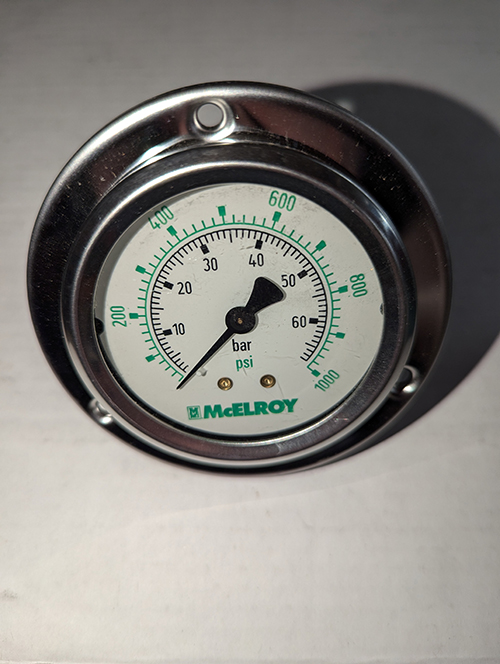

30 MEE00079 View Image 1000PSI Pressure Gauge 1.0 EA 225.00
31 MFC00222 4FSAE/4FSAE/4FSAE Tee (Effective to 4/4/22) 1.0 EA 0.00
32 MFD00081 Hose Clamp 1.0 EA 14.92
33 MFH00142 Rubber Dust Plug for MFH00140 1.0 EA 15.32
34 MFH00118 Rbr Dust Cap for MFH00063/141 1.0 EA 13.32
35 MFH00140 Obs & Repl by MFH00062 (Effective to 6/15/25) 1.0 EA 0.00
35 MFH00062 View Image 3/8 Fsae Quick Disc Coupler 1.0 EA 210.00
36 MFH00141 View Image Obs & Repl by MFH00063 (Effective to 6/15/25) 1.0 EA 0.00

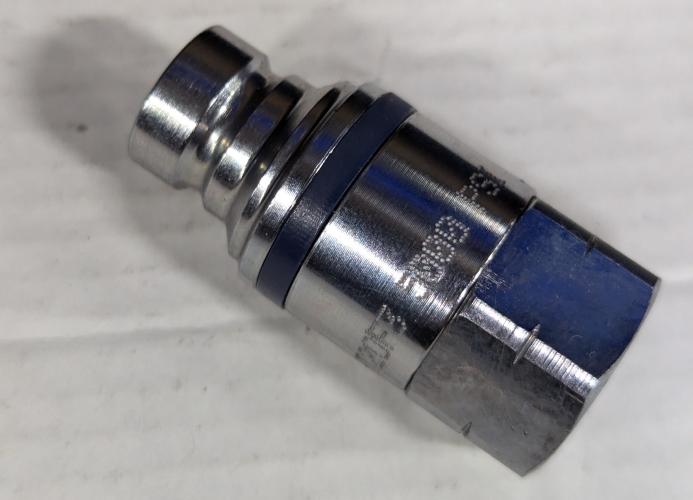

36 MFH00063 View Image 3/8 Fsae Quick Disc Nipple 1.0 EA 100.00
37 MFQ00040 View Image 4MSL/4MSAE Elbow (Effective to 4/4/22) 1.0 EA 10.33
38 MFQ00101 4MSL/8MSAE Adapter 1.0 EA 0.00
39 MFQ00141 4MSL/8MSAE Elbow 1.0 EA 63.51
40 MLW00015 1/4DIA Split Corrugated Tubing 2.84 FT 0.00
41 MQB00092 2000PSI Pressure Transducer (Effective to 9/8/22) 1.0 EA 441.00
41 MQBP0882893 1000PSI Pressure Transducer 1.0 EA 322.00
42 SLABBDB019 Hose Assy Oal 19" 1.0 EA 45.31
43 SLABBDB021 Hose Assy Oal 21" 1.0 EA 66.16
44 SLABBDB022 Hose Assy Oal 22" 1.0 EA 43.20
45 MFC00243 4FSAE/4MPT Adapter (Effective 4/5/22 to 5/17/22) 1.0 EA 0.00
46 MEE00080 1/4NPT 1500PSI Gauge Snubber 2.0 EA 36.75
47 MFA00009 View Image 4FPT/4FPT Elbow 1.0 EA 16.28
48 MFC00152 4FSAE/4MSAE/4FSAE Branch Tee (Effective 5/18/22 to 10/17/22) 1.0 EA 96.52
48 MFA00010 4FPT/4FPT/4FPT Tee 1.0 EA 21.10
49 MFQ00080 4MSL/4MNPT Adapter 1.0 EA 7.00
50 MFC00169 4MSAE/4FSAE Elbow (Effective 9/9/22 to 10/17/22) 1.0 EA 54.67
51 MFC00205 4MSAE/6FSAE Adapter (Effective 9/9/22 to 10/17/22) 1.0 EA 0.00
51 MFA00204 View Image 4MPT/6FSAE Adapter 1.0 EA 19.03
52 MFC00032 View Image 4MSAE/4MPT Adapter 1.0 EA 11.14
53 MFQ00125 6MSL/4MPT Elbow (Effective 10/18/22 to 11/8/22) 1.0 EA 0.00
53 MFQ00081 View Image 4MSL/4MNPT Elbow 1.0 EA 14.62
Part Number 718805 Supplemental Kits

Item
Item
Price
A723301 Ep800 npt gauge kit
214.00
