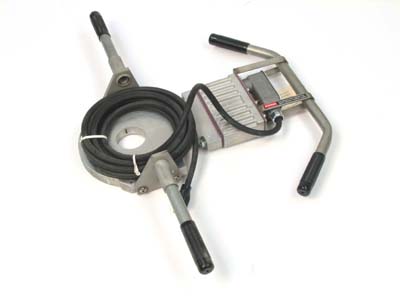

28 220-240V,50/60Hz Sidewall Heater Assembly
Item Number: 826803
Price: $7,759.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
28 220-240V,50/60Hz Sidewall Heater Assembly


Part Number 826803 Component List
  Item Component Description Quantity Unit
Price
1 826907 8 Thermoswitch Sdwl Htr Body 1.0 EA 4,582.00
2 827301 View Image Sidewall Htr Lever Assy 2.0 EA 146.00
3 827101 View Image Sidewall Htr Mtg Bracket Wld 1.0 EA 541.00
4 827102 View Image Sidewall Htr Mtg Bracket Wld 1.0 EA 541.00
5 1207302 View Image Htr Gasket 2.0 EA 13.16
6 1810902 View Image Heater Terminal Box 1.0 EA 295.00
7 1808102 View Image Htr Gasket 2.0 EA 5.26
8 827201 Sidewall Htr Handle Bracket 1.0 EA 1,030.00
9 MJM00003 View Image 3/8-16NC Keensert 4.0 EA 12.00
10 MBE00007 View Image 3/8 Reg Splt Lck Wshr Stl PL 2.0 EA 0.12
11 MAH00070 View Image 3/8-16NCX1LG Bhscs SS 4.0 EA 0.92
12 MJK00002 View Image 2.5LG,150-650DEG F Thermometer 1.0 EA 48.72
13 MAH00071 3/8-16NCX2-1/2LG Shcs SS 2.0 EA 2.40
14 MBA00007 View Image 3/8-16NC Fnsh Hex Nut Stl PL 2.0 EA 0.29
15 MLC00006 View Image Thermoswitch Mod 1.0 EA 332.00
16 MAH00046 View Image #10-24NCX1/2LG Shcs SS 9.0 EA 0.39
17 MLN00008 3/4"NPT Chase Nipple 1.0 EA 2.75
18 MLK00004 View Image 3/4 Condulet "lb" (Effective 2/11/91 to 1/6/21) 1.0 EA 44.02
18 MLK00154 3/4 Condulet 'll' 1.0 EA 0.00
19 215601 View Image Mlmc Htr Grommet 1.0 EA 11.28
20 MJJ00002 1" Black Hand Grip 2.0 EA 4.84
21 MLK00006 View Image Gasket 1.0 EA 9.42
22 MLK00005 View Image Cover 1.0 EA 14.37
23 MLK00003 View Image 3/4 Strain Relief Connector 1.0 EA 28.85
24 MLE00031 #14/3 EL CABLE&NEMA6-15P X20FT 1.0 EA 72.62
25 410903 View Image Danger Not Expln Proof Label 2.0 EA 2.60
26 MLM00010 View Image 2/12-4/18 Closed End Splice 3.0 EA 1.20
27 MLL00215 #14 Type Tggt Wire, Green/yel 0.5 FT 2.62
28 MLM00013 View Image 14-16 X #10 Hi-temp Ring Term 7.0 EA 1.18
29 826904 View Image 8 Sdwl Htr Body Mtg Bkt Gasket 2.0 EA 9.90
30 MJQ00125 View Image 1/16" X 3.3" X 6.63" Gasket 2.0 EA 11.25
31 223901 Heater Tag (Effective 9/7/94 to 3/20/13) 1.0 EA 0.00
32 8163210 Electrical Safety Test Label 1.0 EA 0.00
33 MLL00020 View Image #14 Type Tggt Wire 1.5 FT 2.48
34 MLJ00123 3/4" Myers Hub 1.0 EA 0.00
35 MLJ00124 3/4" Close Nipple 1.0 EA 0.00
Part Number 826803 Suggested Accessories

Item
Description
Price
826903 Sidewall Heater Blanket
 		552.00
