Acrobat 250 100-120V, 50/60Hz, 1Ph Facer Assembly
Item Number: 900601
Price: $5,790.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
Acrobat 250 100-120V, 50/60Hz, 1Ph Facer Assembly


Part Number 900601 Component List
  Item Component Description Quantity Unit
Price
1 808802 View Image Driver Sprocket Hex 1.0 EA 69.11
2 883401 Dynamc Elec Facer Bearing Cap 1.0 EA 168.00
3 883701 Dynamc 250 Guide Rod Bracket 2.0 EA 115.00
4 899501 View Image Motor Adapter Plate Wld 1.0 EA 616.00
5 899601 View Image Motor Retaining Block 1.0 EA 273.00
6 899701 View Image Motor Drive Shaft Wld 1.0 EA 615.00
7 899801 View Image Motor Spacer 1.0 EA 48.03
8 AT803501 View Image Facer Roller Chain Assembly 1.0 EA 43.02
9 710605 250 Pp-r Blade (Effective to 6/8/16) 4.0 EA 0.00
9 T1208601 View Image 4.63 LG Facer Blade 4.0 EA 118.00
10 T802807 View Image Electric Facer Body 1.0 EA 1,844.00
11 T2502002 View Image Tapped blade holder 1.0 EA 1,065.00
12 T2502003 Counterbored Blade Holder 1.0 EA 1,065.00
13 T803001 Bearing Spacer 1.0 EA 48.29
14 T803101 View Image Bearing Retainer 1.0 EA 81.02

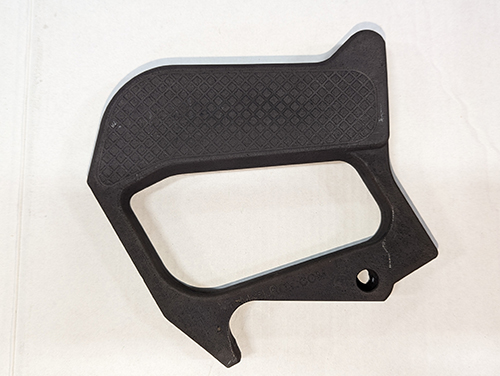

15 T803303 View Image Dynamc 250 Latch Handle Mod 1.0 EA 99.86
16 T803401 View Image Driven Sprocket 1.0 EA 342.00
17 MAC00053 View Image 1/4-20NCX3/4LG Shcs PL 2.0 EA 0.49
18 MAC00055 View Image 1/4-20NCX1LG Shcs PL 6.0 EA 0.25
19 MAD00031 View Image #10-24NCX1/2LG Fhscs 8.0 EA 0.39
20 MAC00435 1/4-20NCX2LG Shcs PL 1.0 EA 0.84
21 MAH00051 View Image 1/4-20NCX1-3/4LG Shcs SS (Effective to 11/9/16) 4.0 EA 1.23
21 MAH00067 View Image 1/4-20NCX2LG Shcs SS 4.0 EA 1.14
22 MAH00074 View Image #8-32NCX3/8LG Fhscs SS 12.0 EA 0.29
23 MAB00064 View Image 3/8-16NCX1LG Hhcs (Effective to 8/28/25) 4.0 EA 0.51
23 MAB00065 View Image 3/8-16NCX1-1/4LG Hhcs 4.0 EA 0.52
24 MCG00009 View Image 1/4DIAX1-1/8LG Roll Pin ZN PL 1.0 EA 0.73
25 MCK00073 View Image 3/8DIAX1-1/2LG Lock Pin Stl PL 1.0 EA 2.62
26 MDB00120 View Image 120V, 9A Universal Motor 1.0 EA 1,631.00
27 MDL00230 View Image Seal 1.0 EA 129.00
28 MDM00027 View Image Ball Bearing 1.0 EA 24.99
29 MDM00305 View Image Bearing 1.0 EA 1,092.00

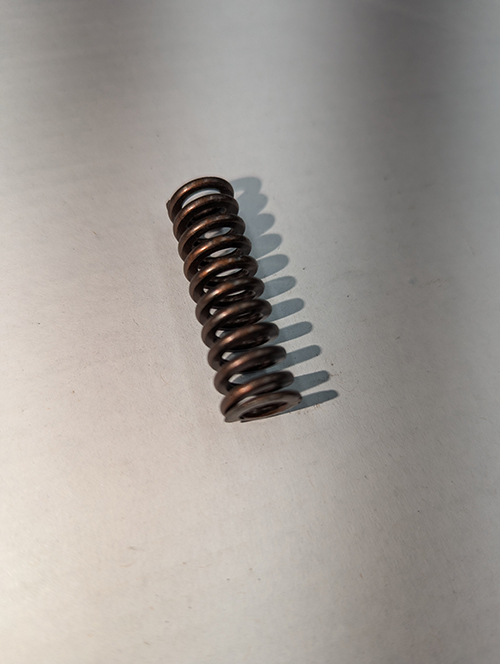

30 MJE00071 View Image Die Spring 1.0 EA 13.44
31 MJJ00009 View Image 1" Black Gloss Hand Grip 1.0 EA 3.86
32 MBA00005 View Image 1/4-20NC Fnsh Hex Nut Stl PL 1.0 EA 0.32
33 410902 View Image Danger Not Expln Proof Label 1.0 EA 1.80
Part Number 900601 Suggested Replacements

Item
Description
Price
MDB00123 Toggle switch for mdb00120/121
 		101.00
MDB00124 Elec cord assy for mdb00120
86.00
MDB00127 Strain relief for mdb00120
30.91
T1208602 4.63 Long Facer Blade Set (4 Blades)
