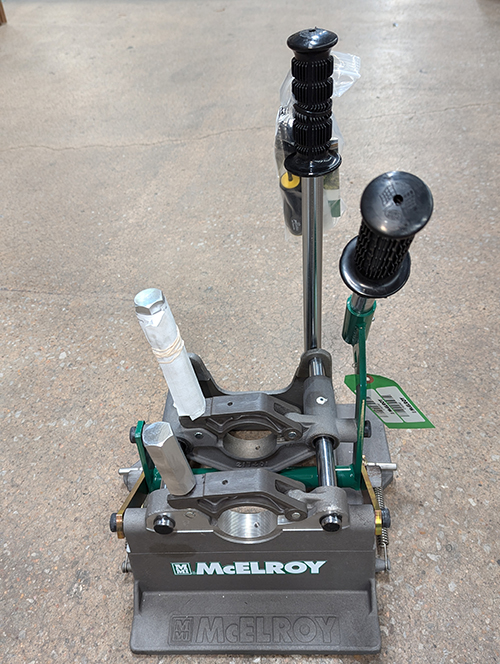

#2LC Butt 200-240v, 50/60Hz Fusion Machine Package
Item Number: A217202
Price: $4,455.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
#2LC Butt 200-240v, 50/60Hz Fusion Machine Package


Part Number A217202 Component List
  Item Component Description Quantity Unit
Price
1 217201 (assembly) View Image 2LC Butt Fusion Machine Assembly 1.0 EA 2,345.00
2 A215506 (assembly) Obsolete & Replaced by 252901 (Effective 2/1/05 to 2/9/20) 1.0 EA 0.00
2 252901 (assembly) 2 MultiMc Butt Plate 200-240V, 50/60Hz Heater Assembly 1.0 EA 859.00
3 216101 (assembly) View Image 2 Facer Assembly 1.0 EA 1,391.00
4 218301 (assembly) View Image 2 Heater/Facer Stand Assembly 1.0 EA 353.00
Part Number A217202 Supplemental Kits

Item
Item
Price
ASW15902 2CU, 2LC, Sidewinder & #14 Storage Box Kit
 		722.00
Part Number A217202 Related Manuals, Instruction Sheets, and Older Equipment

Item
Description
Price
433901 #2LC & PitBull 14 Fusion Machine Operator's Manual
 		78.80
433902 #2LC & PitBull 14 Fusion Machine Spanish Operator's Manual
 		0.00
433903 #2LC & PitBull 14 Fusion Machine Portuguese Operator's Manual
0.00
433904 #2LC & PitBull 14 Fusion Machine Russian Operator's Manual
 		0.00
816336110 Prop 65 Warning Label Instruction Sheet for 2LC & 2CU
 		0.00
Part Number A217202 Suggested Accessories

Item
Description
Price
203004 #2LC & 2CU 3x9 Fabric Heat Shield
 		102.00
205702 2 Facer Blade Set (4 Blades)
 		148.00
439001 Manual Fusion Machine Stand
 		2,028.00
A214201 Butt Fusion Screw/Driver Kit
 		42.49
A215701 2 & #2LC Heater Butt Plate Kit
 		142.00
A218804 -100+600 Digital Pyrometer Kit
 		743.00
A228501 2 LC Jaw Bushing Replacement Kit
 		1,936.00
MJQ00193 #2LC Storage Box w/ Foam Insert
 		1,452.00
