PitBull 14 200-240v,50/60Hz,1Ph Fusion Machine Package
Item Number: A430102
Price: $6,133.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
PitBull 14 200-240v,50/60Hz,1Ph Fusion Machine Package


Part Number A430102 Component List
  Item Component Description Quantity Unit
Price

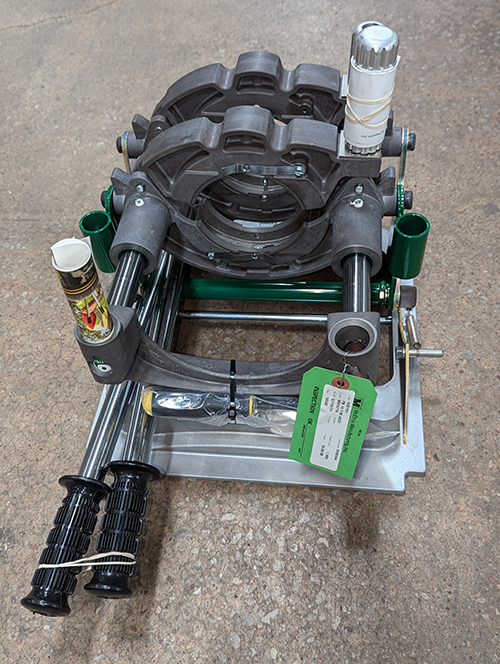

1 430101 (assembly) View Image PitBull 14 Fusion Machine Assembly 1.0 EA 2,607.00
2 433702 (assembly) PitBull 14 200-240V,50/60Hz,1Ph Facer Assembly 1.0 EA 3,201.00
3 433104 (assembly) View Image PitBull 14 Heater/Facer Stand Assembly 1.0 EA 533.00
4 A424318 (assembly) Obsolete & Replaced by 469901 (Effective 2/1/05 to 2/9/20) 1.0 EA 0.00
4 469901 (assembly) PitBull® No. 14 butt plate 200-240v,50/60hz Heater Assembly 1.0 EA 1,108.00
Part Number A430102 Supplemental Kits

Item
Item
Price
ASW15902 2CU, 2LC, Sidewinder & #14 Storage Box Kit
 		722.00
Part Number A430102 Related Manuals, Instruction Sheets, and Older Equipment

Item
Description
Price
433901 #2LC & PitBull 14 Fusion Machine Operator's Manual
 		78.80
433902 #2LC & PitBull 14 Fusion Machine Spanish Operator's Manual
 		0.00
433903 #2LC & PitBull 14 Fusion Machine Portuguese Operator's Manual
0.00
433904 #2LC & PitBull 14 Fusion Machine Russian Operator's Manual
 		0.00
816336101 Prop 65 Warning Label Instruction Sheet for Pit Bull 14 & 26
 		0.00
Part Number A430102 Suggested Accessories

Item
Description
Price
1867501 Low Profile Roller Assembly
 		377.00
1875501 Polyhorse Package with Manual Front Roller
 		14,829.00
1875502 Polyhorse Package with Power Assisted Front Roller
 		20,475.00
1875505 Short Polyhorse Package with Power Assisted Front Roller
 		20,021.00
203005 Sidewinder & 14 7x13 Fabric Heat Shield
 		107.00
410601 14 Stub End Holder Assembly
 		599.00
413702 14 Facer Blade Set (4 Blades)
 		174.00
422801 14 Pipe Stand Assembly
 		739.00
423601 14 Shipping Container
 		N/A
434001 PitBull 14 Cart Assembly
 		2,331.00
439001 Manual Fusion Machine Stand
 		2,028.00
864201 2-8" PolyPorter Pipe Handler
 		842.00
A214201 Butt Fusion Screw/Driver Kit
 		42.49
A218804 -100+600 Digital Pyrometer Kit
 		743.00
A425201 4 MultiMc Heater Butt Plate Kit
 		182.00
A425801 PitBull 14/26 Jaw Bushing Replacement Kit
 		1,458.00
