1LC 120V Fusion Machine Package
Item Number: ACTS23301
Price: $3,975.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
1LC 120V Fusion Machine Package


Part Number ACTS23301 Component List
  Item Component Description Quantity Unit
Price
1 CTS08301 View Image MiniMc Heater Sling 1.0 EA 166.00
2 CTS15701 1LC Case Label 1.0 EA 6.45
3 CTS15801 1LC Case W/foam Insr&lid Orgzr 1.0 EA 441.00
4 CTS15901 1LC Fusion Machine Operator's Manual 1.0 EA 78.80
5 CTS17602 (assembly) View Image 1LC Facer Assembly 1.0 EA 1,442.00
6 CTS20101 (assembly) View Image Obsolete & Replaced by CTS24201 (Effective to 7/26/20) 1.0 EA 0.00

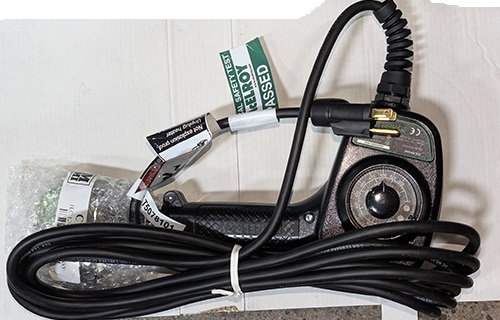

6 CTS24201 (assembly) View Image 1LC 120V Heater Assembly 1.0 EA 1,000.00
7 CTS23501 (assembly) 1LC Extended Carriage Assembly 1.0 EA 1,924.00
Part Number ACTS23301 Related Manuals, Instruction Sheets, and Older Equipment

Item
Description
Price
816336112 Prop 65 Warning Label Instruction Sheet for 1LC
 		0.00
CTS15901 1LC Fusion Machine Operator's Manual
 		78.80
