Obsolete & Replaced by T12P1099296
 412 220-240V, 50/60Hz, 1Ph Heater Assembly
 (4-2024 to 6-2026)
Item Number: T12P0760665
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
412 220-240V, 50/60Hz, 1Ph Heater Assembly


412 220-240V, 50/60Hz, 1Ph Heater Assembly


Part Number T12P0760665 Component List
  Item Component Description Quantity Unit
Price
1 T12P1015270 C'bored Heater Body 1.0 EA 654.00
2 T12P1015272 412 Tapped Heater Body 1.0 EA 0.00
3 T12P1016345 412 Heater OD Spacer 1.0 EA 93.05
4 T12P1017550 412 240V Heating Element 1.0 EA 745.00
5 T12P1017552 412 Heater Pull Handle Wld 1.0 EA 215.00
6 T18P1006875 412/618 Heater Shoulder Nut 6.0 EA 49.27
7 T18P1010794 Jaw Standoff 1.0 EA 38.04
8 T18P1015134 Heater Junction Box Back 1.0 EA 0.00
9 T18P1015162 Heater Junction Box Mod (Effective to 2/23/26) 1.0 EA 126.00
9 T18P1101625 Heater Junction Box Mod 1.0 EA 125.43
10 T18P1015276 Splice Plate 2.0 EA 50.55
11 T18P1015319 Lifting Lug 1.0 EA 9.36
12 T18P1015954 Splice Plate Spacer 2.0 EA 115.00
13 T18P1022707 Heater Junction Box Cover 1.0 EA 0.00
14 1242106 View Image Heater I.d. Spacer 1.0 EA 16.51
15 1242108 12 LW Htr Butt Plate (Effective to 2/14/25) 2.0 EA 504.00
16 1857301 View Image Heater Standoff (Effective to 2/14/25) 12.0 EA 8.50
17 410906 View Image Dng Not Expln Proof Tag Label (Effective to 5/23/24) 1.0 EA 4.20
18 8163210 Electrical Safety Test Label 1.0 EA 0.00
19 841304 12/3 & 20/3 Heater Cable (Effective to 5/23/24) 3.0 FT 64.94
20 MAB00005 View Image 1/4-20NCX1-1/4LG Hhcs (Effective to 5/23/24) 6.0 EA 0.31
20 MANP1023952 1/4-20NCX1-1/4LG Hhcs SS 4.0 EA 0.69
21 MAB00256 1/4-20NCX1/2LG Hxhd SR Flg Blt (Effective to 8/11/24) 6.0 EA 0.35
21 MAN00097 1/4-20NCX1/2LG Hhcs SS 8.0 EA 0.30
22 MALP1018637 #6-32X1/4LG Pan Thrd Frmng Scr 1.0 EA 0.00
23 MAN00001 View Image #10-24NCX3/8 LG Fhscs SS (Effective to 2/14/25) 24.0 EA 0.41
24 MAN00023 View Image #8-32NCX5/16LG Shcs SS 20.0 EA 0.49
25 MAN00047 #10-24NCX1LG Fhscs SS 2.0 EA 0.49
26 MAN00050 #8-32NCX1LG Shcs SS (Effective to 1/6/25) 2.0 EA 0.40
26 MAN00125 #8-32NCX7/8LG Shcs SS (Effective 1/7/25 to 2/23/26) 2.0 EA 0.41
26 MAL00016 #10-24NC X 1/2LG Hwh TF Screw 2.0 EA 0.49
27 MBA00003 #8-32NC Hex Nut Stl PL (Effective to 2/23/26) 2.0 EA 0.32
28 MBA00005 View Image 1/4-20NC Fnsh Hex Nut Stl PL (Effective to 5/23/24) 6.0 EA 0.32
28 MBA00061 View Image 1/4-20NC Fnsh Hex Nut 18-8 SS 6.0 EA 0.46
29 MBE00003 View Image #8 Reg Splt Lck Washer Stl PL (Effective to 2/23/26) 2.0 EA 0.05
30 MBE00005 View Image 1/4 Reg Splt Lck Washer Stl PL (Effective to 5/23/24) 6.0 EA 0.10
30 MBE00023 View Image 1/4 Reg Splt Lck Washer SS 6.0 EA 0.11
31 MCB00094 3/4 ID Retaining Ring PL 2.0 EA 1.02
32 MJJ00009 View Image 1" Black Gloss Hand Grip 1.0 EA 3.86
33 MJJP1015640 Cushioned Round Grip 1.0 EA 10.77
34 MJK00002 View Image 2.5LG,150-650DEG F Thermometer 1.0 EA 48.72
35 MKI00009 View Image 1X3/16 316SS 100OHM Dual Rtd 1.0 EA 115.00
36 MLJ00004 View Image 1/2 Seal Ring 1.0 EA 5.24
37 MLJ00005 View Image 3/4 Seal Ring 1.0 EA 5.67

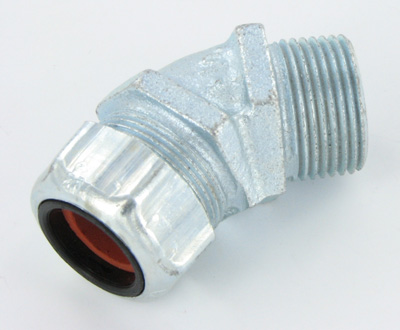

38 MLK00022 View Image 1/2 Strain Relief Connector 1.0 EA 25.93
39 MLK00079 View Image 3/4 X 45DEG Strain Relief Conn 1.0 EA 80.64
39 MLK00041 1/2 X 45DEG Strain Relief Conn (Effective 5/24/24 to 11/19/24) 1.0 EA 0.00
40 MLM00040 View Image 18-22 Hi-temp Butt Splice 3.0 EA 1.04
41 MLM00395 10-12 X #8 Hi-temp Ring Term (Effective to 5/23/24) 1.0 EA 1.16
42 MLMP1018067 10-12 to 14-16 Splice 2.0 EA 1.85
43 MLN00100 View Image 1/2" Conduit Lock Nut 1.0 EA 1.03
44 MLN00219 Fiberglass Tape (per Ft) 4.0 FT 0.56
45 MLN00281 3/8" Black Shrink Tubing 2.5 IN 4.00
46 MLN00311 View Image 1/8" Black Shrink Tubing (Effective to 5/23/24) 1.5 IN 3.00
47 MLN00362 View Image 3/4" Elec Lock Nut 1.0 EA 1.27
48 MQFP0934625 SZ 16, 90DEG Backshell (Effective to 5/23/24) 1.0 EA 36.00
49 MQFP0997017 14-12AWG SZ12 Pin Terminal (Effective to 5/23/24) 3.0 EA 0.80
50 MQFP1018096 9 Pos Male Plug (Effective to 5/23/24) 1.0 EA 36.00
51 MQFP1018301 22-20AWG SZ16 Pin Terminal (Effective to 5/23/24) 4.0 EA 2.06
52 N1T12P0760665 Nameplate 1.0 EA 0.00
53 T18P1023925 Heater Cable Assy 1.0 EA 406.00
54 T12P1021152 412 Heater Arm 1.0 EA 236.00
55 A1242108 View Image 12 Heater Butt Plate Kit 1.0 EA 894.00
56 MBE00004 View Image #10 Reg Splt Lck Washer Stl PL 2.0 EA 0.10
Part Number T12P0760665 Supplemental Kits

Item
Item
Price
A1242108 12 Heater Butt Plate Kit
 		894.00
