412/618i Heater Facer Stand
Item Number: T18P1041702
Price: $3,175.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
412/618i Heater Facer Stand


Part Number T18P1041702 Component List
  Item Component Description Quantity Unit
Price

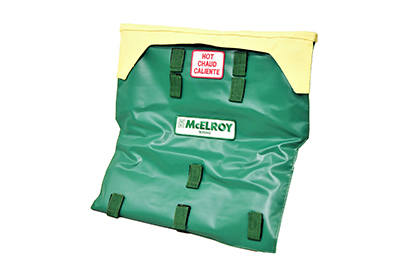

1 1835302 View Image Insulated Heater Panel 2.0 EA 0.00
2 T18P1041936 Storage Frame Wld 1.0 EA 0.00
3 T18P1041958 Guide Short Tube 1.0 EA 0.00
4 T18P1042042 Storage Side Plate 2.0 EA 0.00
5 T18P1042173 Guide Rod Bracket 4.0 EA 0.00
6 T18P1042204 Guide Short Tube Heater 1.0 EA 0.00
7 T18P1042344 Storage Facer Side Plate 1.0 EA 0.00
8 T18P1042830 Rotate Bracket 1.0 EA 0.00
9 MAB00009 View Image 1/4-20NCX2-1/4LG Hhcs 1.0 EA 0.74
10 MAB00257 1/4-20NCX3/4LG Hxhd SR Flg Blt 12.0 EA 0.52
11 MAF00080 3/8DIAX3/8LG Skt HD Shldr Scr 1.0 EA 6.28
12 MBC00005 View Image 1/4-20NC Fnsh Hex Nyl Lck Nut 1.0 EA 0.39
13 MBC00006 View Image 5/16-18NC Fnsh Hex Nyl Lck Nut 1.0 EA 0.39
14 MBF00005 View Image 1/4 TY 'a' Wide FL Wshr Stl PL 5.0 EA 0.11
15 MBF00006 View Image 5/16TY 'a' Wide FL Wshr Stl PL (Effective to 1/19/25) 1.0 EA 0.11
16 MBG00031 View Image 1/4 Fender Washer Stl PL 1.0 EA 0.31
17 MBH00083 Unthrd 5/8ODX9/16LG AL Spacer 1.0 EA 0.00
18 MCBP1016739 1-3/4EXT Spiral Retaining Ring 8.0 EA 5.27
19 MCE00002 View Image 1/4DIAX2.00 Grip Detent Pin 2.0 EA 10.72
20 MCFP1042336 1/4DIAX1-13/16 Grip Clv Pin PL 2.0 EA 0.00
21 MCFP1042338 1/4DIAX2-9/16 Grip Clv Pin PL 1.0 EA 0.00

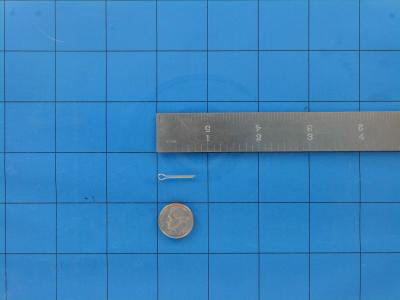

22 MCH00025 View Image 1/16 DIAX1/2LG Cot Pin Stlpl 3.0 EA 0.07
23 MCKP1024132 24" E/e, Coated Lanyard Wire 2.0 EA 0.00
24 MJQ00380 View Image Wht, Blk Hook Lift Point Label 3.0 EA 6.90
25 MLJP1014202 20" HD Hanging Strap 1.0 EA 0.00
26 MBGP1008341 3/8 .390 ID Nyln Plstc Washer 1.0 EA 0.00
