TracStar 900 High Force Cylinder w/wear bands Assembly Set
Item Number: T9000504
Price: $13,360.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
TracStar 900 High Force Cylinder w/wear bands Assembly Set


Part Number T9000504 Component List
  Item Component Description Quantity Unit
Price

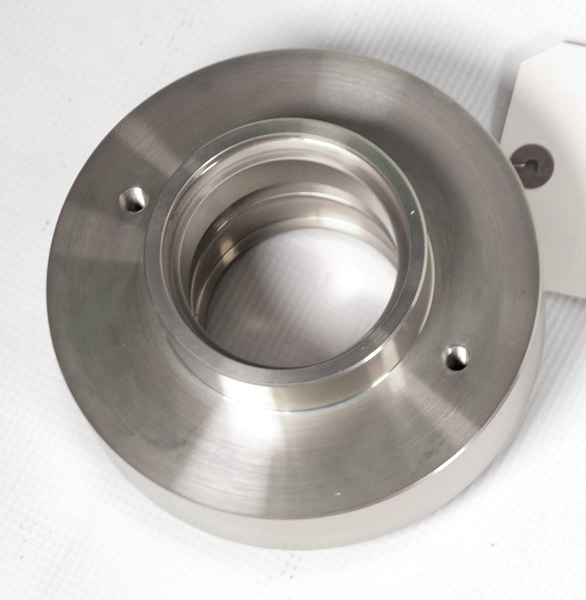

1 2413603 View Image HF Hyd Cylinder Rod Gland 4.0 EA 632.00

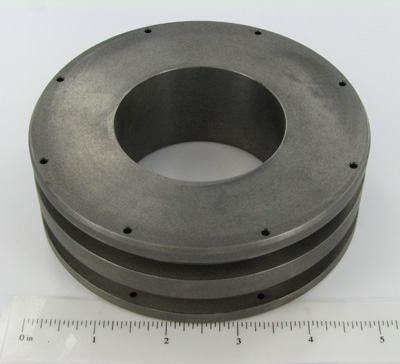

2 2410101 View Image HF Piston 2.0 EA 703.00

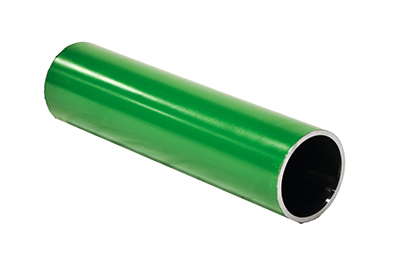

3 T9002702 Guide Rod 2.0 EA 2,029.00
4 T9002902 View Image HF Carriage Cylinder 2.0 EA 1,355.00
5 T9002801 View Image Tie Rod 8.0 EA 153.00

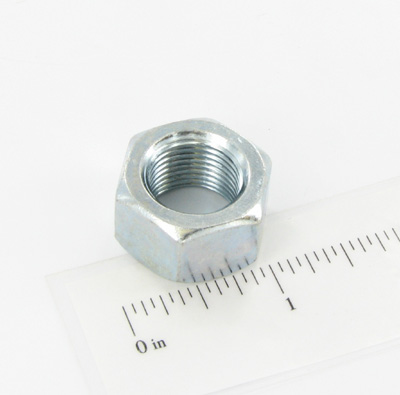

6 MBA00031 View Image 5/8-18NF Fnsh Hex Nut Stl PL 16.0 EA 0.69
7 MBG00003 5/8 Type 'an' Type Wshr Stl PL 16.0 EA 0.65

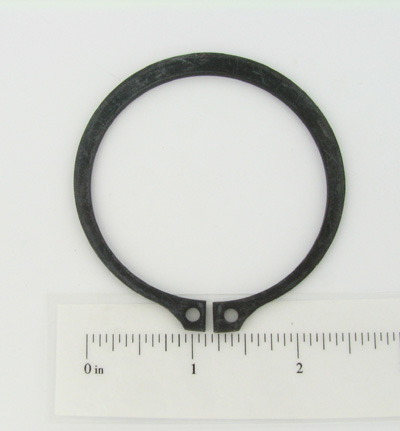

8 MCB00015 View Image Ext Snap Ring (Effective to 4/1/26) 4.0 EA 2.73
8 MCBP1103457 2.5" Heavy Duty Spirolox Ring 4.0 EA 6.00

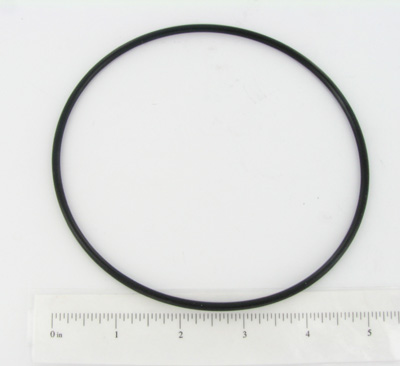

9 MDL00019 View Image O-ring 4.0 EA 3.80

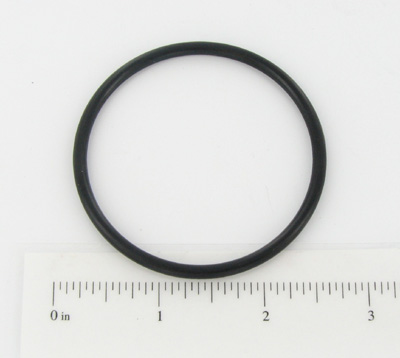

10 MDL00007 View Image O-ring 2.0 EA 1.58
11 MDL00040 View Image Seal 4-7/16 ID X 5OD 4.0 EA 24.29
12 MDL00039 View Image Washer 4.0 EA 16.13
13 MDL00293 Polyurethane Piston Wiper 4.0 EA 32.47

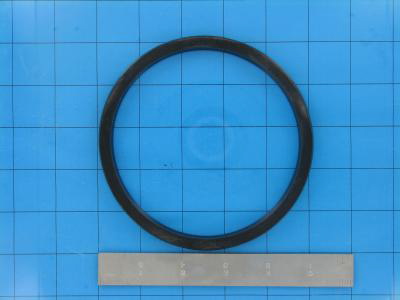

14 MDL00291 Polyurethane Piston Seal 4.0 EA 82.52

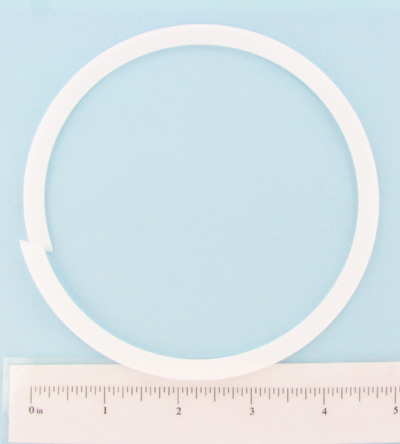

15 MDM00465 Glass Fill Nylon Wear Ring 4.0 EA 30.45

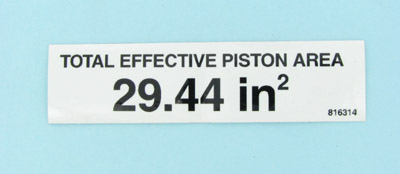

16 816314 View Image 29.44 SQ IN Tepa Label 1.0 EA 10.11
Part Number T9000504 Supplemental Kits

Item
Item
Price
AT9049201 TracStar 900, TracStar 630, 824, 1236 HF Carriage Seal Kit
 		707.00
